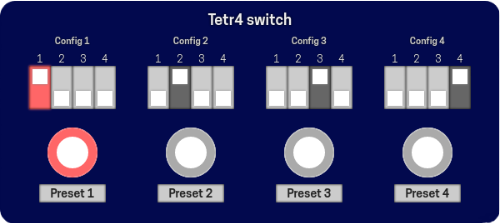

Tetr4 switch is a loop switcher for CV. Store which of its four CV outputs are on in each of four presets, and change between them with a single footswitch.
| Control | Default | Min | Max |
|---|---|---|---|
| Preset 1 | 1 | 0 | 1 |
| Preset 2 | 0 | 0 | 1 |
| Preset 3 | 0 | 0 | 1 |
| Preset 4 | 0 | 0 | 1 |
| Current preset | 0 | 0 | 3 |
| Assign to notfy1 | 0 | 0 | 1 |
| Assign to notfy2 | 0 | 0 | 1 |
| Assign to notfy3 | 0 | 0 | 1 |
| Assign to notfy4 | 0 | 0 | 1 |
| Preset 1 - Output 1 | 1.00 | 0.00 | 1.00 |
| Preset 1 - Output 2 | 0.00 | 0.00 | 1.00 |
| Preset 1 - Output 3 | 0.00 | 0.00 | 1.00 |
| Preset 1 - Output 4 | 0.00 | 0.00 | 1.00 |
| Preset 2 - Output 1 | 0.00 | 0.00 | 1.00 |
| Preset 2 - Output 2 | 1.00 | 0.00 | 1.00 |
| Preset 2 - Output 3 | 0.00 | 0.00 | 1.00 |
| Preset 2 - Output 4 | 0.00 | 0.00 | 1.00 |
| Preset 3 - Output 1 | 0.00 | 0.00 | 1.00 |
| Preset 3 - Output 2 | 0.00 | 0.00 | 1.00 |
| Preset 3 - Output 3 | 1.00 | 0.00 | 1.00 |
| Preset 3 - Output 4 | 0.00 | 0.00 | 1.00 |
| Preset 4 - Output 1 | 0.00 | 0.00 | 1.00 |
| Preset 4 - Output 2 | 0.00 | 0.00 | 1.00 |
| Preset 4 - Output 3 | 0.00 | 0.00 | 1.00 |
| Preset 4 - Output 4 | 1.00 | 0.00 | 1.00 |
