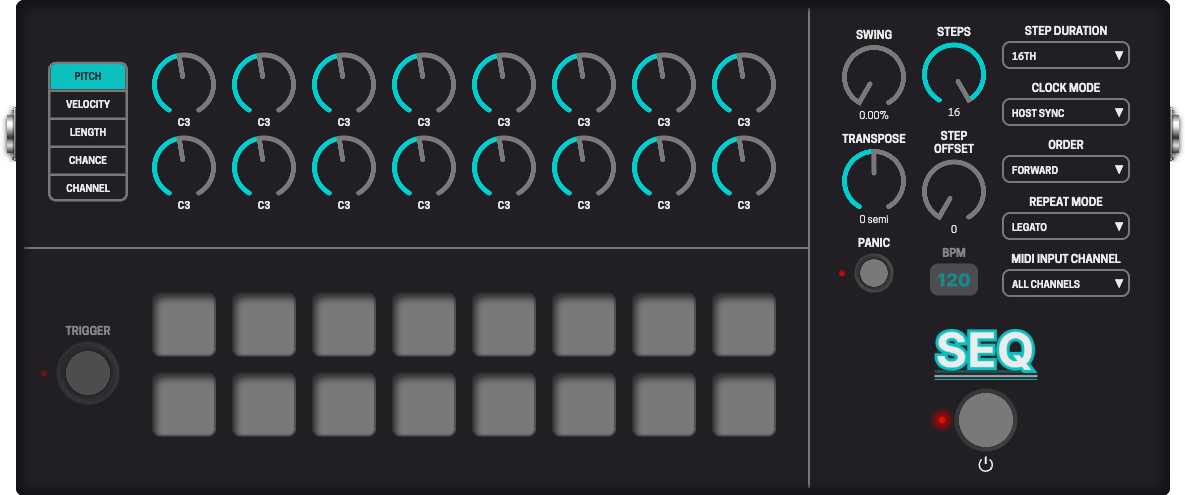

dm-Seq
A simple monophonic sequencer. You can sync this sequencer to the host bpm, use it in free running mode or go through the steps with a manual trigger.
| Control | Default | Min | Max |
|---|---|---|---|
| Enable | 1 | 0 | 1 |
| Trigger | 0 | 0 | 1 |
| Steps | 16 | 1 | 16 |
| Step Offset | 0 | 0 | 15 |
| Swing | 0.00% | 0.00% | 100.00% |
| Transpose | 0.00 semi | -48.00 semi | 48.00 semi |
| Step Duration | 2 | 0 | 6 |
| Clock Mode | 0 | 0 | 2 |
| Order | 0 | 0 | 8 |
| Repeat Mode | 0 | 0 | 1 |
| MIDI Input Ch. | 0 | 0 | 16 |
| Knob Target | 0 | 0 | 4 |
| BPM | 120.00 BPM | 20.00 BPM | 280.00 BPM |
| Note 1 | 60 | 0 | 127 |
| Note 2 | 60 | 0 | 127 |
| Note 3 | 60 | 0 | 127 |
| Note 4 | 60 | 0 | 127 |
| Note 5 | 60 | 0 | 127 |
| Note 6 | 60 | 0 | 127 |
| Note 7 | 60 | 0 | 127 |
| Note 8 | 60 | 0 | 127 |
| Note 9 | 60 | 0 | 127 |
| Note 10 | 60 | 0 | 127 |
| Note 11 | 60 | 0 | 127 |
| Note 12 | 60 | 0 | 127 |
| Note 13 | 60 | 0 | 127 |
| Note 14 | 60 | 0 | 127 |
| Note 15 | 60 | 0 | 127 |
| Note 16 | 60 | 0 | 127 |
| Velocity 1 | 127 | 0 | 127 |
| Velocity 2 | 127 | 0 | 127 |
| Velocity 3 | 127 | 0 | 127 |
| Velocity 4 | 127 | 0 | 127 |
| Velocity 5 | 127 | 0 | 127 |
| Velocity 6 | 127 | 0 | 127 |
| Velocity 7 | 127 | 0 | 127 |
| Velocity 8 | 127 | 0 | 127 |
| Velocity 9 | 127 | 0 | 127 |
| Velocity 10 | 127 | 0 | 127 |
| Velocity 11 | 127 | 0 | 127 |
| Velocity 12 | 127 | 0 | 127 |
| Velocity 13 | 127 | 0 | 127 |
| Velocity 14 | 127 | 0 | 127 |
| Velocity 15 | 127 | 0 | 127 |
| Velocity 16 | 127 | 0 | 127 |
| Length 1 | * 1.00 | * 0.01 | * 16.00 |
| Length 2 | * 1.00 | * 0.01 | * 16.00 |
| Length 3 | * 1.00 | * 0.01 | * 16.00 |
| Length 4 | * 1.00 | * 0.01 | * 16.00 |
| Length 5 | * 1.00 | * 0.01 | * 16.00 |
| Length 6 | * 1.00 | * 0.01 | * 16.00 |
| Length 7 | * 1.00 | * 0.01 | * 16.00 |
| Length 8 | * 1.00 | * 0.01 | * 16.00 |
| Length 9 | * 1.00 | * 0.01 | * 16.00 |
| Length 10 | * 1.00 | * 0.01 | * 16.00 |
| Length 11 | * 1.00 | * 0.01 | * 16.00 |
| Length 12 | * 1.00 | * 0.01 | * 16.00 |
| Length 13 | * 1.00 | * 0.01 | * 16.00 |
| Length 14 | * 1.00 | * 0.01 | * 16.00 |
| Length 15 | * 1.00 | * 0.01 | * 16.00 |
| Length 16 | * 1.00 | * 0.01 | * 16.00 |
| Chance 1 | 100.00% | 0.00% | 100.00% |
| Chance 2 | 100.00% | 0.00% | 100.00% |
| Chance 3 | 100.00% | 0.00% | 100.00% |
| Chance 4 | 100.00% | 0.00% | 100.00% |
| Chance 5 | 100.00% | 0.00% | 100.00% |
| Chance 6 | 100.00% | 0.00% | 100.00% |
| Chance 7 | 100.00% | 0.00% | 100.00% |
| Chance 8 | 100.00% | 0.00% | 100.00% |
| Chance 9 | 100.00% | 0.00% | 100.00% |
| Chance 10 | 100.00% | 0.00% | 100.00% |
| Chance 11 | 100.00% | 0.00% | 100.00% |
| Chance 12 | 100.00% | 0.00% | 100.00% |
| Chance 13 | 100.00% | 0.00% | 100.00% |
| Chance 14 | 100.00% | 0.00% | 100.00% |
| Chance 15 | 100.00% | 0.00% | 100.00% |
| Chance 16 | 100.00% | 0.00% | 100.00% |
| Channel 1 | 1 | 1 | 16 |
| Channel 2 | 1 | 1 | 16 |
| Channel 3 | 1 | 1 | 16 |
| Channel 4 | 1 | 1 | 16 |
| Channel 5 | 1 | 1 | 16 |
| Channel 6 | 1 | 1 | 16 |
| Channel 7 | 1 | 1 | 16 |
| Channel 8 | 1 | 1 | 16 |
| Channel 9 | 1 | 1 | 16 |
| Channel 10 | 1 | 1 | 16 |
| Channel 11 | 1 | 1 | 16 |
| Channel 12 | 1 | 1 | 16 |
| Channel 13 | 1 | 1 | 16 |
| Channel 14 | 1 | 1 | 16 |
| Channel 15 | 1 | 1 | 16 |
| Channel 16 | 1 | 1 | 16 |
| Gate 1 | 0 | 0 | 1 |
| Gate 2 | 0 | 0 | 1 |
| Gate 3 | 0 | 0 | 1 |
| Gate 4 | 0 | 0 | 1 |
| Gate 5 | 0 | 0 | 1 |
| Gate 6 | 0 | 0 | 1 |
| Gate 7 | 0 | 0 | 1 |
| Gate 8 | 0 | 0 | 1 |
| Gate 9 | 0 | 0 | 1 |
| Gate 10 | 0 | 0 | 1 |
| Gate 11 | 0 | 0 | 1 |
| Gate 12 | 0 | 0 | 1 |
| Gate 13 | 0 | 0 | 1 |
| Gate 14 | 0 | 0 | 1 |
| Gate 15 | 0 | 0 | 1 |
| Gate 16 | 0 | 0 | 1 |
| MIDI Panic | 0 | 0 | 1 |
| Current Step | -1 | -1 | 15 |
https://github.com/davemollen/dm-Seq
v.1:0.0-1
